HMC - Hydraulic Mini Cranes

The HMC (Hydraulic Mini-Crane) davit system is an example of exceptional design for the modern yacht. Its primary material of construction is aluminum alloy, including aluminum hydraulic cylinders, which make the system light and resistant to corrosion. The HMC Davit was designed to look appropriate on the bow of a modern sportfish yacht, or pedestal mounted on the foredeck of a large motoryacht.  These davits are ideal for wet locations with demanding duties.

Specifications

HMC Series 2
1100/1700lb (499/771kg)
120in (274-376cm)

An exceptionally low-profile boom perfect for the Sportfish yacht.

10ft (3m) long boom capable of being fully loaded to its safe working load capacity in any position without restriction.

Features our silent operating Hydraulic Linear Winch system, a totally non-fouling winch design.

Powered by a remotely mounted one-horsepower hydraulic power unit for performance and hidden from the conditions.

Aluminum hydraulic cylinders with internal safety locking valves accuate each function for unsurpassed corrosion resistance, dependability and reduced weight.

Sealed steel bearings permit smooth manual rotation.

A through-deck standpipe is the standard mounting structure for stability and performance. An optional pedestal base mount may also be used in some applications.

An optional hydraulic power rotating standpipe may be selected for enhanced control and ease of operation.

System is finished to Nautical Structures highest level of quality, wash primed, exposed welds are faired, 2-part high build primed again, then two top coats of 2-part urethane paint are applied. Our standard colors are Matterhorn white, Off White and Snow White. All other colors are special order and quoted upon request.

Davit is assembled and tested prior to shipment.

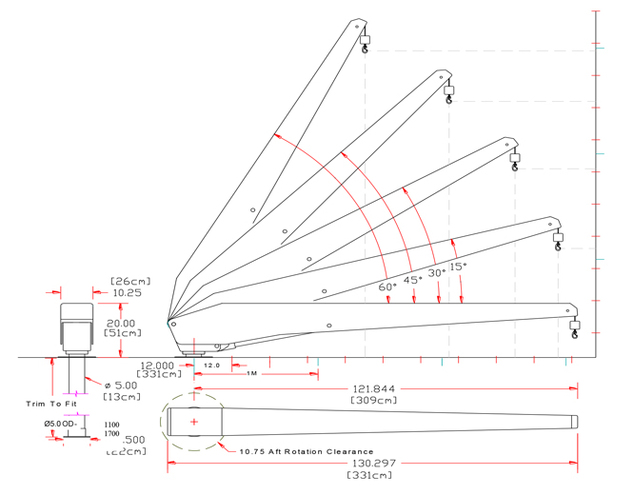

Mechanical Specifications

Hydraulic Boom Luffing from 0° through 60°.


Reach

Maximum: 118in (274cm) at 15° position

Minimum: 54in (137cm) at 60° position


Aft rotation clearance: 10.75in (27cm)

Manual rotation on roller bearings: 360°
Optional 180° or 259° hydraulic rotating standpipe

Hydraulic Linear Winch system.
Rigged 6:1 with stainless steel wire rope, brass weight and stainless steel safety snap hook.

Cable pay-out: 21ft (6.4m)


System Weight

HMC 1100-2-120: 300lb (136kg)
5in Standpipe: 120lb (54kg)

HMC 1700lb - Series 2: 320lb (145kg)
5in Standpipe: 150lb (68kg)

Electric/Hydraulic Specifications

115V AC, 60 Hz, 1 Ph.
230V AC, 60 Hz, 1 Ph.
230V AC, 50 Hz, 1 Ph.


Waterproof Delrin remote control switch is wired to a 20ft (6.1m) removable pendant.


1 Hp Hydraulic power unit, 3000 psi (203 bar), 0.5 gpm (1.8 lpm) output.
Fluid type: AW-68, ISO quality 17/15/12

Rated Capacity

HMC 1100-2-120: 1,100lb (500kg)
11,000 ft/lb maximum moment capacity

HMC 1700lb2-120: 1,700lb (771 kg)
17,000 ft/lb maximum moment capacity

Warranty

12 Month limited warranty, including hydraulics, electrical and labor.
(See Warranty fordetails)

Click to print HMC Series 2 1100/1700lb 120in specification sheet

Back to top

HMC Series 3
1100/1700lb (499/771kg)
120in (300cm)

An exceptionally low-profile boom perfect for the Sportfish yacht.

10ft (2.74m) long boom capable of being fully loaded to its safe working load capacity in any position without restriction.

Features our silent operating Hydraulic Linear Winch system, a totally non-fouling winch design.

Powered by a remotely mounted one-horsepower hydraulic power unit for performance and hidden from the conditions.

Aluminum hydraulic cylinders with internal safety locking valves accuate each function for unsurpassed corrosion resistance, dependability and reduced weight.

Sealed steel bearings permit smooth manual rotation.

A through-deck standpipe is the standard mounting structure for stability and performance. An optional pedestal base mount may also be used in some applications.

An optional hydraulic power rotating standpipe may be selected for enhanced control and ease of operation.

System is finished to Nautical Structures highest level of quality, wash primed, exposed welds are faired, 2-part high build primed again, then two top coats of 2-part urethane paint are applied. Our standard colors are Matterhorn white, Off White and Snow White. All other colors will be a special order and quoted upon request.

Davit is assembled and tested prior to shipment.

Mechanical Specifications

Hydraulic Boom Luffing from 0° through 60°.


Reach

Maximum: 118in (300cm) at 15° position

Minimum: 54in (137cm) at 60° position


Aft rotation clearance: 10.75in (27cm)

Rotation: 359 degree hydraulic rotary actuator

Hydraulic Linear Winch system
Rigged 6:1 with stainless steel wire rope, brass weight and stainless steel safety snap hook.

Cable pay-out: 21ft (6.4m)


System Weight

HMC 1100-3: 350lb (159kg)
5in Standpipe: 185lb (84kg)

HMC 1700-3: 350lb (159kg)
5in Standpipe: 210lb (95kg)

Electric/Hydraulic Specifications

115V AC, 60 Hz, 1 Ph.
230V AC, 60 Hz, 1 Ph.
230V AC, 50 Hz, 1 Ph.


Waterproof Delrin remote control switch is wired to a 20ft (6.1m) removable pendant.


1 Hp Hydraulic power unit, 3000 psi (203 bar), 0.5 gpm (1.8 lpm) output.
Fluid type: AW-68, ISO quality 17/15/12

Rated Capacity

HMC 1100-3-120: 1,100lb (500kg)
11,000 ft/lb maximum moment capacity

HMC 1700-3-120: 1,700lb (771 kg)
17,000 ft/lb maximum moment capacity

Warranty

12 Month limited warranty, including hydraulics, electrical and labor.
(See Warranty fordetails)

Click to print HMC Series 3 1100/1700 120lb specification sheet

Back to top

HMC Hydraulic Mini Crane
1100/1700lb (499/771kg)
144in (300cm)

Available in 1,100lb (499kg) or 1,700lb (771kg) maximum hoist capacity.

12ft (3.6m) boom length, measured from center of rotation to the end of the boom.

Hydraulic boom luffing (raising/lowering the boom/arm), capable of the maximum rated capacity in any position without restriction.

Non-fouling linear winch design with self-limiting travel, two-block protection, self-locking load holding capabilities, automatic lifting overload protection (L.O.P.) for safe, dependable, quiet cable payout and retrieval.

Aluminum hydraulic cylinders with integrated safety locking valves for safe operation, enhanced protection against corrosion and reduced weight.

Hydraulic power rotation/slewing for enhanced control and ease of operation.

A through-deck mount standpipe is the typical mounting structure for the HMC Davit, although a deck mounted pedestal base, cylindrical (round) or pyramid (square) design is available.

Hydraulic power unit, one-horsepower with tray for remote mount.

The davit system is finished to our Nautical Structures high level of quality with urethane paint products. Our standard colors are Matterhorn white, Off white, and Snow white. All other colors will be special order and quoted upon request.

System assembled and dynamic load tested prior to shipment.

Mechanical Specifications

Hydraulic Boom Luffing from 0° through 60°.


Reach

Maximum: 138in (350cm) at 15° position

Minimum: 65in (165cm) at 60° position


Aft Rotation Clearance: 10.75in (27cm)

359° hydraulic power rotation/slew


Hydraulic Linear Winch system.
Rigged 6:1 with stainless steel wire rope, brass weight and stainless steel safety snap hook.


Cable pay-out: 21ft (6.4m)


System Weight

HMC 1100-144: 318lb (144kg)
Standpipe (5in diameter, manual rotation): 86lb (39kg)

HMC 1700-144: 338lb (153kg)
Standpipe (5in diameter, manual rotation): 137lb (62kg)

Electric/Hydraulic Specifications

110V AC, 60 Hz, 1 Ph. supply on 25amp breaker
220/230V AC, 60 Hz, 1 Ph. supply on 20amp breaker
230V AC, 50 Hz, 1 Ph. Optional configuration.


Removable, waterproof Delrin remote control with a 20ft (6.1m) pendant tether and weather connectors.


1 Hp Hydraulic power unit, 3000 psi (203 bar), 0.5 gpm (1.8 lpm) output.
Fluid type: AW-68, ISO quality 17/15/12

Rated Capacity

HMC 1100-144: 1,100lb (499 kg)
13,200 ft/lb maximum moment capacity

HMC 1700-144: 1,700lb (771kg)
20,400 ft/lb maximum moment capacity

Warranty

12 Month limited warranty, including hydraulics, electrical and labor.
(See Warranty fordetails)

Click to print HMC Series 3 1100lb 144in specification sheet

Back to top

HMC Telescoping Series
1100/1700lb (499/771kg)
108-104in (274-376cm)

1,100/1,700lb (499/771kg) maximum hoist capacity, capable of the full rated capacity in any position without restriction.

9 ft. (2.74m) stowed dimension, with hydraulic telescoping boom extension fully retracted, measured from the center of rotation to the end of the boom.

12ft (3.66m) maximum reach with hydraulic telescoping boom fully extended.

Hydraulic linear winch, a non-fouling design built into the extension (maintains constant cable length during extension and retraction of the boom extension). Features self-limiting travel, (two-block protection) self-locking load holding capabilities, L.O.P. (automatic lifting overload protection) for smooth, quiet cable payout and retrieval.

Hydraulic boom luffing, capable of the full rated capacity at any boom angle.

Aluminum hydraulic cylinders with integrated safety locking valves for safe operation, enhanced protection against corrosion and reduced weight.

Hydraulic power rotation/slewing for enhanced control and ease of operation.

Removable, waterproof hand held remote with weather connectors and wander-lead.

Pedestal base deck mount, aluminum, cylindrical (round) or pyramid (square) design. Optional hydraulic power rotating/slewing through deck mount standpipe available.

Hydraulic power unit, one-horsepower with tray for remote mount.

The davit system is finished to our Nautical Structures high level of quality with urethane paint products. Our standard colors are Matterhorn white, Off white, and Snow white. All other colors will be special order and quoted upon request.

System assembled and dynamic load tested prior to shipment.

Mechanical Specifications

Hydraulic Boom Luffing from 0° through 58°.
3 ft. Hydraulic Boom Extension


Reach

Maximum: 108in- 144in (274 - 366cm) at 0° position

Minimum: 53in -72in (134-183cm) at 58° position


Hydraulic Linear Winch system.
Rigged 6:1 with stainless steel wire rope, brass weight and stainless steel safety snap hook.


Hydraulic rotation pedestal mounting: 359°
Optional hyd pwr rotating/slewing standpipe
Aft rotation clearance: 11.125in (28.2cm)


Cable pay-out: 21ft (6.4m)


System Weight

HMC-1100/1700-EX: 398lb (180kg)
Pedestal Base: 137lb (62kg)

Electric/Hydraulic Specifications

115V AC, 50-60 Hz, 1 Ph.
230V AC, 60 Hz, 1 Ph.
230V AC, 50 Hz, 1 Ph. Optional configuration.


Remote control switch is wired to a 20ft (6.1m) removable pendant.


1 Hp Hydraulic power unit, 3000 psi (203 bar), 0.5 gpm - 1.0 gpm (1.8 lpm - 3.8 lpm)output.
Fluid type: QS-888, ISO quality 17/15/12

Rated Capacity

HMC 1100/1700-EX-108-144: 1,700lb (771 kg)

HMC 1100/1700: 20,400 ft/lb maximum moment capacity

Warranty

12 Month limited warranty, including hydraulics, electrical and labor.
(See Warranty fordetails)

Click to print HMC Telescoping 1100/1700lb 108-144in specification sheet

Back to top

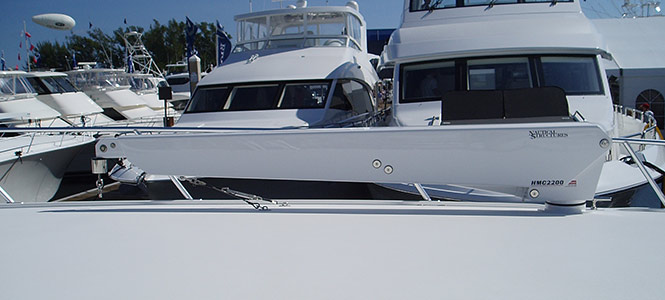

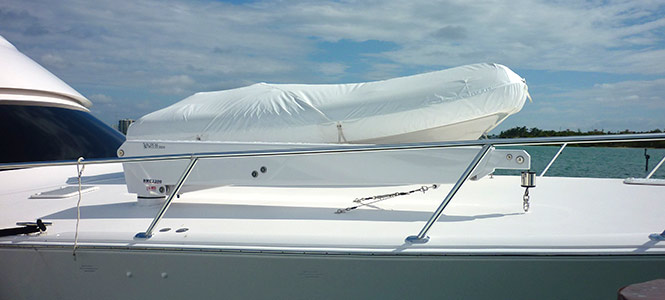

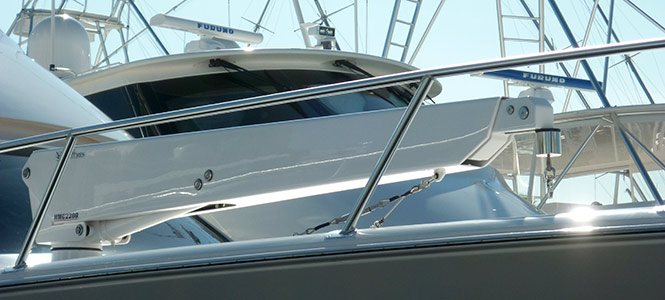

HMC Telescoping Series
2200lb (998kg)
126-168in (320-426cm)

2,200lb (998kg) maximum hoist capacity, capable of the full rated capacity in any position without restriction.

126in (320cm) stowed dimension, with hydraulic telescoping boom extension fully retracted, measured from the center of rotation to the end of the boom.

168in (426cm) maximum reach with hydraulic telescoping boom fully extended.

Hydraulic linear winch, a non-fouling design built into the extension (maintains constant cable length during extension and retraction of the boom extension for enhanced control). Features self-limiting travel, (two-block protection) self-locking load holding capabilities, L.O.P. (automatic lifting overload protection) for safe, smooth, quiet cable payout and retrieval.

Hydraulic boom luffing, capable of the full rated capacity at any boom angle.

Aluminum hydraulic cylinders with integrated safety locking valves for safe operation,enhanced protection against corrosion and reduced weight.

Hydraulic power rotation/slewing for enhanced control and ease of operation.

Removable, waterproof hand held remote with weather connectors and wander-lead.

Aluminum pedestal base deck mount, cylindrical (round) or pyramid (square) design. Optional hydraulic power rotating/slewing through deck mount standpipe available.

Hydraulic power unit, one-horsepower with tray for remote mount.

The davit system is finished to our Nautical Structures high level of quality with urethane paint products. Our standard colors are Matterhorn white, Off white, and Snow white. All other colors will be special order and quoted upon request.

System assembled and dynamic load tested prior to shipment.

Mechanical Specifications

Hydraulic Boom Luffing from 0° through 58°.
3.5ft (1m) Hydraulic Boom Extension


Reach

Maximum: 126in - 168in (320 - 426cm) at 0° position

Minimum: 58in -79in (147 - 200cm) at 60° position


Hydraulic Linear Winch system
Rigged 6:1 with stainless steel wire rope, brass weight and stainless steel safety snap hook.


Hydraulic rotation pedestal mounting: 359°
Optional hyd pwr rotating/slewing standpipe
Aft rotation clearance: 11.125in (28.2cm)


Cable pay-out: 21ft (6.4m)

System Weight

HMC 2200 EX: 1100lb (500kg)
Pedestal Base: 137lb (62kg)
8in (20.3cm) diameter standpipe weight: 270lb (122kg)

Electric/Hydraulic Specifications

230V AC, 60 Hz, 1 Ph.
230V AC, 50 Hz, 1 Ph. (special order)


Remote control switch is wired to a 20ft (6.1m) removable pendant.


1 Hp Hydraulic power unit, 3000 psi (203 bar), 0.5 gpm - 1.0 gpm (1.8 lpm - 3.8 lpm)output.
Fluid type: QS-888, ISO quality 17/15/12

Rated Capacity

HMC-2200-126-168: 2,200lb (998kg)

20,400 ft/lb maximum moment capacity

Warranty

12 Month limited warranty, including hydraulics, electrical and labor.
(See Warranty fordetails)

Click to print HMC Telescoping 2200lb 126-168in specification sheet
